Sunfish pond example
2026-03-21
Introduction
This vignette will show you how to fit the model at multiple binning resolutions using Sunfish Pond (Pennsylvania) as an example dataset (Johnson et al., in review). It is recommended to look at the multinomialTS Vignette before tackling this one! The multinomialTS Vignette takes you through the fitting process, and bootstrapping, of multinomialTS. In this vignette we will go straight into fitting multiple bin widths to assess the sensitivity of the results to the binning resolution.
In this example, the data include a ~13,800-year long fossil pollen record, and a lake level reconstruction used as a proxy for hydroclimatic variability and plant water availability. There are 69 pollen observations over the ~13,800-year long period that are unevenly spaced through time (see the plot below), and lake level has a regular 50-year observation resolution.
Why is bin width important?
Consider the bin width a prediction resolution, it would be unrealistic to make annual predictions over a ~13,800-year long period from 69 observations (this is nice and intuitive), we can only make inference given the information in the data. For example, we may be able to make reasonable predictions at a centennial scale. The larger the bins the less the model will capture processes occurring at a finer temporal scale. For example, if your prediction resolution is 300-years, you might be losing early successional processes occurring at a 100-year scale. Additionally, observations of the covariates that fall within the same bin are averaged; thus, having a smoothing effect on the covariates, which may be undesirable. So, we aim for a bin width as small as reasonably possible in order to minimise the aggregation of data that fall within a single bin.
Data processing
Before fitting a multinomialTS model, the raw data need to be shaped into two matrices:
- : a site-by-species (time-by-taxon) matrix of counts for the focal taxa, with a reference taxon in the first column.
- : a matrix of environmental covariates, aligned to the same temporal resolution as .
Because the lake level reconstruction is built from short cores, and the pollen is from a separate lake core, they do not share a chronology. We won’t be tackling any issues of aligning chronologies here! For the sake of this demonstration, we will be binning the data so that observations fall within the nearest time bin.
First let’s see what the data look like:
Code
sunfish_pollen_long <- sunfish_pollen_wide |>
rename(P.strobus = "P.strobu") |>
pivot_longer(-age) |>
mutate(name = factor(name, levels = c(
"other", "P.strobus", "Tsuga", "Fagus", "Quercus", "Betula"))) |>
arrange(age)

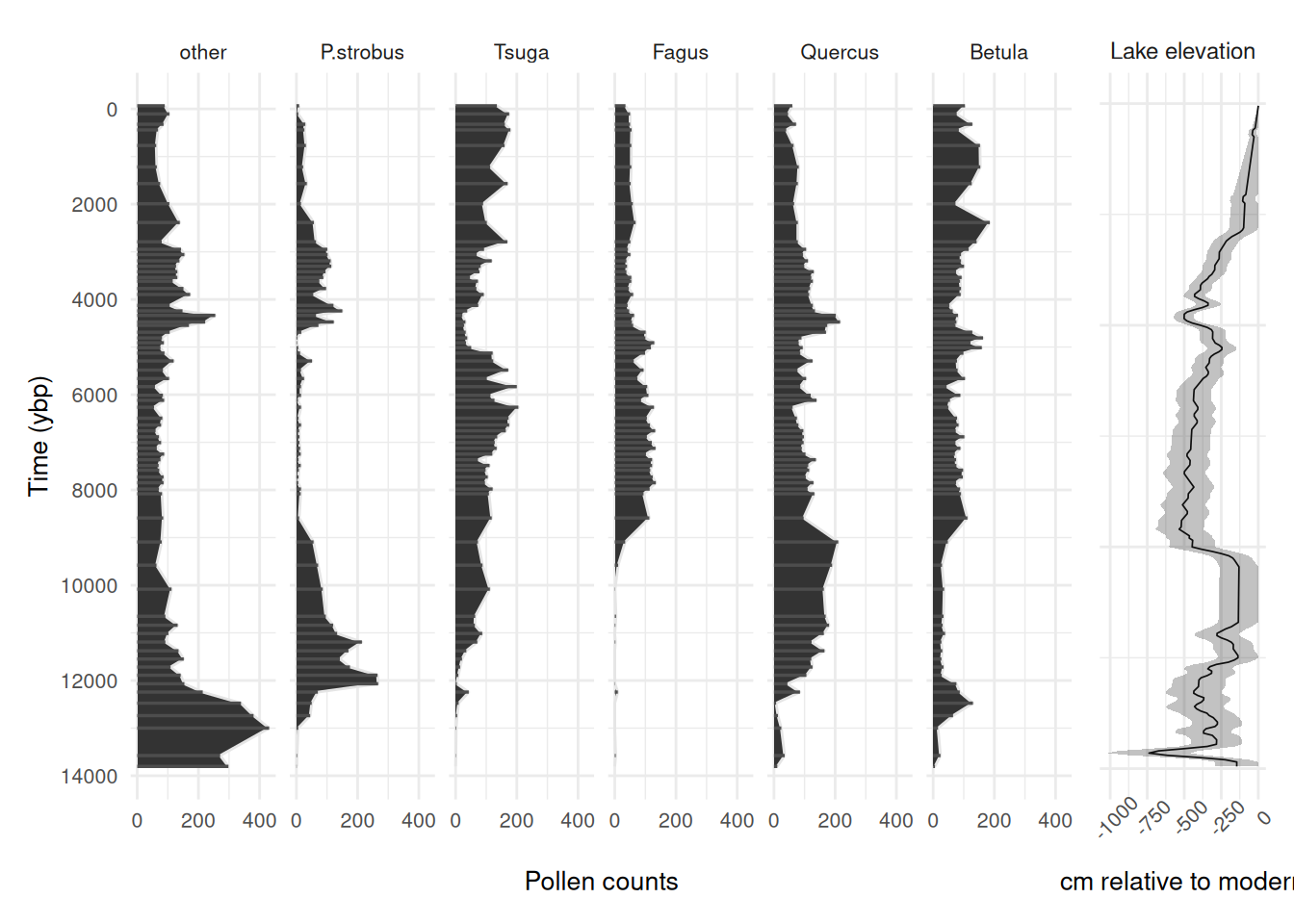

pol_plot <- ggplot(sunfish_pollen_long, aes(x = age, y = value)) +
geom_area(colour = "grey90") +
geom_segment(data = sunfish_pollen_long,
aes(x = age, xend = age,
y = 0, yend = value), colour = "grey30", linewidth = 0.6) +
scale_y_continuous(breaks = scales::breaks_pretty(n = 3)) +
scale_x_reverse(breaks = scales::breaks_pretty(n = 6)) +
coord_flip() +
labs(y = "Pollen counts", x = "Time (ybp)") +
facet_wrap(~name,
nrow = 1) +
theme_minimal() +
theme(
text = element_text(size = 10)
)
ll_plot <- sunfish_ll |>
mutate(panel = "Lake elevation") |> # fake facet variable
ggplot(aes(x = age, y = lake_lvl,
ymin = LowerBound, ymax = UpperBound)) +
geom_line(linewidth = 0.3) +
geom_ribbon(alpha = 0.3) +
coord_flip() +
scale_x_reverse() +
labs(x = NULL, y = "cm relative to modern") +
theme_minimal() +
theme(
axis.text.x = element_text(angle = 45),
text = element_text(size = 10),
strip.text = element_text(size = 9),
axis.text.y = element_blank()
) +
facet_wrap(~panel)
pol_plot + ll_plot + plot_layout(widths = c(0.85, 0.15))
We can see some patterns in the driver and species responses. See the multinomialTS Vignette for how to fit such data in multiple ways to test hypotheses. Here, we will just be using the one model fit (with no species interactions) to demonstrate fitting multiple bin widths.
Prediction resolution sensitivity
Now we are going to fit the data to multiple bin widths. We are going to use the case with no species interactions included in the matrix. To avoid generating too much data for the online vignette, I have used only two bin widths (75 and 150 years), but see the commented-out code to loop over a sequence (bin_width <- seq(50, 150, 25)). The following code loops over the sequence of bin widths and:
- chunks the data into bin widths equal to the number of years (e.g., 50 and 75 year bins)
- sums all pollen observations in each bin so that if more than one observation falls within the same bin they are summed together
- Averages observations of the covariate (lake level) that fall within the same bin
- outputs a list (one element per bin width) of and matrices
# Create some bins
# bin_width <- seq(50, 150, 25)
bin_width <- c(75, 150)
bin_sensitivity_data <- lapply(bin_width, \(bw) {
# Assign each pollen observation to a time bin of width `bw`
sunfish_bins <-
cut(
sunfish_pollen_wide$age,
breaks = seq(
from = min(sunfish_pollen_wide$age),
to = max(sunfish_pollen_wide$age + bw),
by = bw
), include.lowest = T, labels = F)
# Sum pollen counts within each bin; take mean age as the bin's representative age
sunfish_spp_binned <- bind_cols(bins = sunfish_bins, sunfish_pollen_wide) |>
group_by(bins) |>
summarise(across(c("other", "P.strobu", "Tsuga", "Fagus", "Quercus", "Betula"), \(x) sum(x ,na.rm = TRUE)),
age = mean(age, na.rm = TRUE)) |>
arrange(desc(age))
# Assign each lake level observation to the same bin grid as the pollen data
ll_bins <-
cut(
sunfish_ll$age,
breaks = seq(
from = min(sunfish_pollen_wide$age),
to = max(sunfish_pollen_wide$age + bw),
by = bw
), include.lowest = T, labels = F)
# Average lake level within each bin; drop bins outside the pollen age range
ll_mean <- cbind(bins = ll_bins, sunfish_ll) |>
drop_na(bins) |>
select(bins, lake_lvl) |>
group_by(bins) |>
summarise(mean_ll = mean(lake_lvl)) |>
arrange(desc(bins))
# Join pollen and lake level by shared bin index
sunfish_all <- sunfish_spp_binned |>
full_join(ll_mean) |>
arrange(desc(bins))
# Diagnostic: identify which bins lack a lake-level observation
which(is.na(sunfish_all$mean_ll))
# Fill the missing lake-level bin using linear interpolation
sunfish_all_interp <- sunfish_all |>
mutate(across(c(mean_ll), forecast::na.interp))
Y <- sunfish_all_interp |>
select(other, P.strobu, Tsuga, Fagus, Quercus, Betula) |>
as.matrix()
# set up X
X <- sunfish_all_interp |>
select(mean_ll) |>
as.matrix() |>
scale() # scale covariates; important when using multiple X variables with different units
return(list(Y = Y,
X = X))
})
names(bin_sensitivity_data) <- paste0("bw_", bin_width)Let’s check the output to see how many observations in were aggregated.
sum(complete.cases(bin_sensitivity_data$bw_75$Y))
sum(complete.cases(bin_sensitivity_data$bw_150$Y))At a bin width of 75-years 69 remain (all original observations are in independent bins, this is good). At a bin width of 150-years 63 remain. Looks like 6 observations have been aggregated in bins.
We want to find out if different binning resolutions have a notable effect on the model results. Below, I use the future.apply package to run multinomialTS in parallel over the bin widths to save some time!
Tip
Note: this could take a while! If you are running the code as we go, you may not want to run the rest of the vignette.
plan(multisession, workers = length(bin_sensitivity_data))
bin_sensitivity_res <- future_lapply(bin_sensitivity_data, \(x) {
Y <- x$Y
X <- x$X
# Dimensions: p = number of covariates + intercept, n = number of taxa
p <- ncol(X) + 1
n <- ncol(Y)
# Row indices of non-empty time bins (bins with at least one pollen count)
Tsample <- which(rowSums(Y) != 0)
# Fix process variance to identity for the GLMM initialisation step
V.fixed = diag(n)
# Fix reference taxon (column 1) B coefficients to 0; estimate all others
B.fixed <- matrix(c(rep(0,p),rep(NA, (n - 1) * p)), p, n)
B.start <- matrix(c(rep(0,p),rep(.01, (n - 1) * p)), p, n)
# Fit the GLMM to get starting values for the full mnTS model
glmm_mod <- multinomialTS::mnGLMM(Y = Y[which(rowSums(Y) != 0),],
X = X[which(rowSums(Y) != 0), ,drop = F],
B.start = B.start, B.fixed = B.fixed,
V.fixed = V.fixed)
# Use GLMM estimates as starting values for mnTS
B0.start <- glmm_mod$B[1, , drop = F]
B.start <- glmm_mod$B[2:p, , drop = F]
sigma.start <- glmm_mod$sigma
# Allow all V elements to be estimated except V[1,1], which is fixed to 1
# to impose identifiability on the reference taxon variance
V.fixed = matrix(NA, n, n)
V.fixed[1] = 1
V.start <- glmm_mod$V
# Fix reference taxon (column 1) B coefficients to 0; estimate all others
B.fixed <- matrix(NA, ncol(X), n)
B.fixed[,1] <- 0
# Fix reference taxon intercept to 0
B0.fixed = matrix(c(0, rep(NA, n - 1)), nrow = 1, ncol = n)
# Diagonal-only C matrix: community dynamics with no between-taxon interactions
C.start.diag = .5 * diag(n)
C.fixed.diag <- C.start.diag
C.fixed.diag[C.fixed.diag != 0] <- NA # NA = estimate; 0 = fixed at zero (off-diagonals)
# Model with no interactions
start_time <- Sys.time()
mnTS_mod <- mnTS(Y = Y[which(rowSums(Y) != 0),],
X = X, Tsample = Tsample,
B0.start = B0.start, B0.fixed = B0.fixed,
B.start = B.start, B.fixed = B.fixed,
C.start = C.start.diag, C.fixed = C.fixed.diag,
V.start = V.start, V.fixed = V.fixed,
dispersion.fixed = 1, maxit.optim = 1e+8)
end_time <- Sys.time()
end_time - start_time
return(mnTS_mod)
})
# Save the results!
# saveRDS(bin_sensitivity_res, "...")It’s always good idea to save the model outputs as they can take a while to run. Now that we have our model fits, let’s bootstrap them. You will want to do more than the 20 bootstraps as in the demonstration below (data examples have to be small for vignettes). We recommend doing as many bootstraps as processing power will allow for, since the fitting time changes per data set it is tricky to provide any rule of thumb. One method is to fit 10-100 bootstraps using Sys.time() to time the process, then use the result to guide your bootstrapping. We are going to do the bootstrapping in parallel too:
plan(multisession, workers = length(bin_sensitivity_res))
bootstrap_sensitivity <- furrr::future_map(
bin_sensitivity_res, multinomialTS::boot, rep = 20,
.options = furrr_options(seed = 1984))
# saveRDS(bootstrap_sensitivity, "...")Now we have our models bootstrapped, we can plot the output coefficients for the different binning resolutions. While the output provides useful tables of results, these tables need some wrangling before they plot nicely in ggplot2. In this example we pull out the coefficients from the bootstrap output and visualise them per bin resolution. The process is similar for the coefficients. Currently, this is a bit of a manual slog, not very user-friendly, and we will be updating the package to include helper functions. For now, bear with us :)
# Named vector mapping model column names to human-readable labels for plot axes
X_names_list <- c(
mean_ll ="Lake level"
)
# Reshape bootstrapped coefficient table to long format, one row per bootstrap replicate per coefficient
mods_boot <- map(bootstrap_sensitivity, ~ {
as_tibble(.x[[2]]) |>
pivot_longer(-c(logLik, opt.convergence))
}) |>
bind_rows(.id = "mod")
# Compute per-coefficient summary statistics across bootstrap replicates.
# The output already includes standard deviations, but recalculating here is
# necessary because each parallel instance needs to be combined and this method
# lets you choose custom quantile bounds (here: 68% credible interval ≈ ±1 SD).
mods_boot_68 <- mods_boot |>
group_by(mod, name) |>
summarise(boot_mean = mean(value),
boot_sd = sd(value),
upper_68 = quantile(value, probs = 0.84),
lower_68 = quantile(value, probs = 0.16)) |>
mutate(t_scores = boot_mean / boot_sd,
p_vals = 2 * pnorm(q = abs(t_scores), lower.tail = F),
sig = p_vals < 0.05)
# Map internal y1–y6 column names back to taxon names.
# Order must match the column order in the original Y matrix.
mods_boot_table <- mods_boot_68 |>
mutate(name = str_replace_all(name,
pattern = "y1|y2|y3|y4|y5|y6",
replacement = function(x) case_when(
x == "y1" ~ "Other",
x == "y2" ~ "P.strobus",
x == "y3" ~ "Tsuga",
x == "y4" ~ "Fagus",
x == "y5" ~ "Quercus",
x == "y6" ~ "Betula",
TRUE ~ x))) |>
filter(!str_detect(name, "v."))
mods_boot_68_B <- mods_boot_68 |>
filter(grepl(paste(names(X_names_list), collapse = "|"), name)) |>
separate_wider_delim(cols = name, delim = ".", names = c("cov", "name")) |>
mutate(name = str_replace_all(name,
pattern = "y2|y3|y4|y5|y6",
replacement = function(x) case_when(
x == "y2" ~ "_P.strobus_",
x == "y3" ~ "_Tsuga_",
x == "y4" ~ "_Fagus_",
x == "y5" ~ "_Quercus_",
x == "y6" ~ "_Betula_",
TRUE ~ x)),
mod = fct(mod, levels = names(bootstrap_sensitivity)))
bin_labs <- names(bootstrap_sensitivity)
names(bin_labs) <- levels(mods_boot_68_B$mod)Now that we have everthing wrangled and re-named, let’s make some visualisations to compare the different binning resolutions.

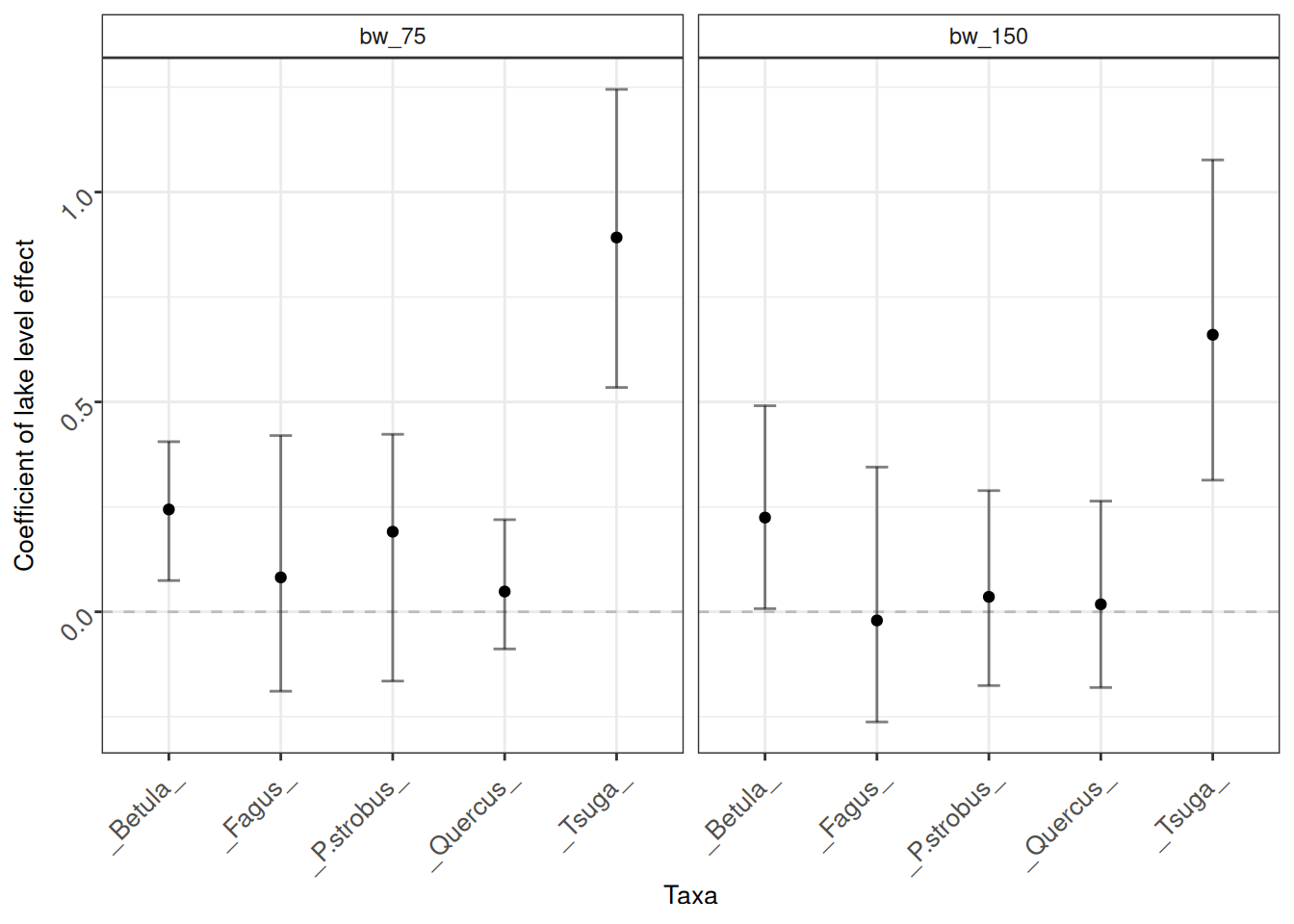

mod_plots_B <- mods_boot_68_B |>
mutate(panel = "Lake level effect") |>
ggplot(aes(x = name, y = boot_mean)) +
geom_point() +
geom_hline(yintercept = 0, linetype = "dashed", alpha = 0.2) +
geom_errorbar(aes(ymin = lower_68, ymax = upper_68),
width = .2, alpha = 0.5) +
facet_wrap(~mod, labeller = labeller(mod = bin_labs)) +
labs(x = "Taxa", y = "Coefficient of lake level effect") +
theme_bw() +
theme(
axis.text = element_markdown(size = 10, angle = 45, hjust = 1),
axis.title = element_text(size = 10),
strip.background = element_rect(fill = NA),
legend.position = "inside",
legend.position.inside = c(.11, .91),
legend.text = element_text(size = 8),
legend.title = element_text(size = 8),
legend.background = element_rect(fill = NA)
)
mod_plots_B
In this instance, there is no great change in the coefficients at the different binning resolutions. This is good! We can have some confidence that our inferences are not strongly affected by the window size. The smaller binning window (75-year bins) maintains all observations in independent bins and the model had no issue converging at this resolution. That is a reasonable justification to go with a 75-year binning resolution.
